Industrial storage tanks

The low thermal conductivity of TECNOFOAM (approximately 0.030 W/ m*K), offers excellent insulation, allowing the temperature inside the storage tank to be kept at a stable level.

The wide range of densities available offers ideal solutions for all types of tank structure and contents.

Thermal insulation of storage tanks by injection

If the tank does not having any leaks and is equipped with a double enclosure system, TECNOFOAM polyurethane foam provides excellent insulation properties without altering its aesthetics or interior capacity.

cubierta plana transitable

1 Isolation layer

In this case the injectable TECNOFOAM range should be used.

Logotipo Tecnofoam espuma de poliuretano
Polyurethane foam for injection (applied density ±35 kg/m³ )

TECNOFOAM I-2035 HFO is an injection polyurethane foam system for thermal insulation, is specifically formulated to apply foam with applied density around 35 to 45 kg/m ³.  Its application must be carried out by the specific reactor equipment by mixing Tecnofoam I-2035 HFO (polyol side) and Tecnofoam G-2049.I (isocyanate side). The blowing agent is HFO gas.

más información

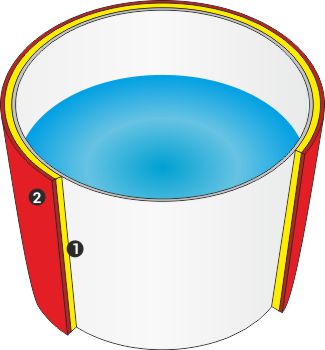

Thermal insulation of storage tanks by exterior projection

Aislamiento depósitos

1. Isolation layer

tecnofoam G-2025
Spray polyurethane foam (SPF) system for thermal insulation(applied density ±28kg/m³)

TECNOFOAM G-2025 spray polyurethane foam system (SPF) for thermal insulation is specifically formulated to apply foam with applied density around (±26~30 kg/m³).  Its application must be carried out by the specific reactor equipment by mixing Tecnofoam G-2025 (polyol side) and Tecnofoam G-2049.I (isocyanate side). The blowing agent is water.

It has CE marking on the basis of a statement made DoP Declaration of Performance (DoP) under the European Norm EN-14315-1:2031.

más información
Spray polyurethane foam (SPF) system for thermal insulation(applied density ±35 kg/m³)

TECNOFOAM G-2035, spray polyurethane foam system  (SPF) for thermal insulation is specifically formulated to apply foam with applied density around (±32~38 kg/m³).  Its application must be carried out by the specific reactor equipment by mixing Tecnofoam G-2035 (polyol side) and Tecnofoam G-2049.I (isocyanate side). The blowing agent is water.

It has CE marking on the basis of a statement made DoP Declaration of Performance (DoP) under the European Norm EN-14315-1:2031.

más información
Spray polyurethane foam (SPF) system for thermal insulation(applied density ±40 kg/m³)

TECNOFOAM G-2040, spray polyurethane foam system (SPF)for thermal insulation is specifically formulated to apply foam with applied density around (±38~45 kg/m³). Its application must be carried out by the specific reactor equipment by mixing Tecnofoam G-2040 (polyol side) and Tecnofoam G-2049.I (isocyanate side). The blowing agent is water.

It has CE marking on the basis of a statement made DoP Declaration of Performance (DoP) under the European Norm EN-14315-1:2031.

más información

2. Protection layer

TECNOFOAM is an aromatic material and will need protection from external agents such as UV rays using TECNOTOP 2C.

If exterior waterproofing as protection against rain is required, apply TECNOCOAT P-2049 LV + TECNOTOP 2C.

Tecnocoat P-2049 LV
Low-viscosity pure polyurea membrane for waterproofing and coating

TECNOCOAT P-2049 LV is a two-component, low-viscosity, sprayable, aromatic coating suitable for waterproofing, protection, and sealing. It's made up of two high reactive liquid components, isocyanates and amines, mixed together using our specific spray equipment (TC2049 http://spray-equipment.tecnopolgroup.com/) or similar, to form a solid, continuous, watertight and waterproof, seamless, high density and elastic pure polyurea membrane, with mechanical qualities especially for protecting the spray polyurethane foams systems TECNOFOAM (SPF).





más información
Tecnotop 2c
Two-component, aliphatic polyurethane solvent based resin suitable as a flooring and protection against UV rays

TECNOTOP 2C is a two-component aliphatic, colored, glossy, polyurethane solvent-based, resin for treatment, decoration, flooring and protection of our waterproofing liquid systems (TECNOCOAT y DESMOPOL) in front of UV rays. It has continuous finishing and forms a hard, strong, continuous film, with excellent adhesion and mechanical properties as its excellent resistance to abrasion and stress that make it resistant to weathering, extreme temperature. It is suitable for coating protection for car traffic.

más información

Thermal insulation of storage tanks by interior projection

Aislamiento depósitos interior

1. Isolation layer

tecnofoam G-2025
Spray polyurethane foam (SPF) system for thermal insulation(applied density ±28kg/m³)

TECNOFOAM G-2025 spray polyurethane foam system (SPF) for thermal insulation is specifically formulated to apply foam with applied density around (±26~30 kg/m³).  Its application must be carried out by the specific reactor equipment by mixing Tecnofoam G-2025 (polyol side) and Tecnofoam G-2049.I (isocyanate side). The blowing agent is water.

It has CE marking on the basis of a statement made DoP Declaration of Performance (DoP) under the European Norm EN-14315-1:2031.

más información
Spray polyurethane foam (SPF) system for thermal insulation(applied density ±35 kg/m³)

TECNOFOAM G-2035, spray polyurethane foam system  (SPF) for thermal insulation is specifically formulated to apply foam with applied density around (±32~38 kg/m³).  Its application must be carried out by the specific reactor equipment by mixing Tecnofoam G-2035 (polyol side) and Tecnofoam G-2049.I (isocyanate side). The blowing agent is water.

It has CE marking on the basis of a statement made DoP Declaration of Performance (DoP) under the European Norm EN-14315-1:2031.

más información
Spray polyurethane foam (SPF) system for thermal insulation(applied density ±40 kg/m³)

TECNOFOAM G-2040, spray polyurethane foam system (SPF)for thermal insulation is specifically formulated to apply foam with applied density around (±38~45 kg/m³). Its application must be carried out by the specific reactor equipment by mixing Tecnofoam G-2040 (polyol side) and Tecnofoam G-2049.I (isocyanate side). The blowing agent is water.

It has CE marking on the basis of a statement made DoP Declaration of Performance (DoP) under the European Norm EN-14315-1:2031.

más información

2. Protection layer

To protect TECNOFOAM from contact with the stored contents it is necessary to apply TECNOCOAT P-2049, which in addition to providing high resistance to numerous chemical elements (please consult our technical department), is also officially certified as safe for use with food products, drinking water and alcohol.

100% pure polyurea membrane for waterproofing and coating

TECNOCOAT P-2049 is a two-component, sprayable, aromatic coating suitable for waterproofing, protection, and sealing. It is made up of two high reactive liquid components, isocyanates and resins, mixed together using our specific spray equipment TC2049 or similar, to form a solid, continuous, watertight and waterproof, seamless, hard and elastic pure polyurea membrane, with high mechanical qualities. It has CE marking on the basis of a statement made DoP Declaration of Performance (DoP) conforms to the UE 305/2011 regulation.

más información
Tecnotop 2cp
Two-component, aliphatic polyurethane solvent based resin (suitable for full immersion and chlorinated behavior)

TECNOTOP 2CP is a two-component aliphatic, colored, glossy, polyurethane solvent-based resin for coating, flooring, decoration, and especially for the protection of the waterproofing liquid systems (TECNOCOAT y DESMOPOL) against the UV rays. It has continuous finishing and forms a hard, strong, continuous film, with excellent adhesion and mechanical properties.  The excellent resistance to abrasion, wear, and stress make it resistant to weathering and extreme ambiance temperature. Suitable for surfaces and areas in contact with chlorinated and salines waters, even immersion use that is particularly suitable for the lining of pools, lakes, or aquatic areas.

más información
